Engineering Concrete Batching Plant –Structural Highlights:

1. Batching System

1) Each storage hopper features dual discharge gates for fast batching

2) Gate openings are adjustable to minimise material drop height and improve weighing accuracy

3) Individual gate design prevents aggregate jamming (stone blockage)

4) High belt-conveyor legs facilitate easy cleaning of spilled materials

5) A deflector shield at the drum head reduces impact on the inclined belt and minimises belt misalignment

6) Dedicated air receiver (or air tank) ensures rapid cylinder response for frequent gate operations, without affecting the main pneumatic circuit pressure

7) Ground-level batching bin provides larger storage capacity and lower loading height, reducing loader operating costs, enabling easier winterisation (below 0 °C), improving environmental performance, and extending service life.

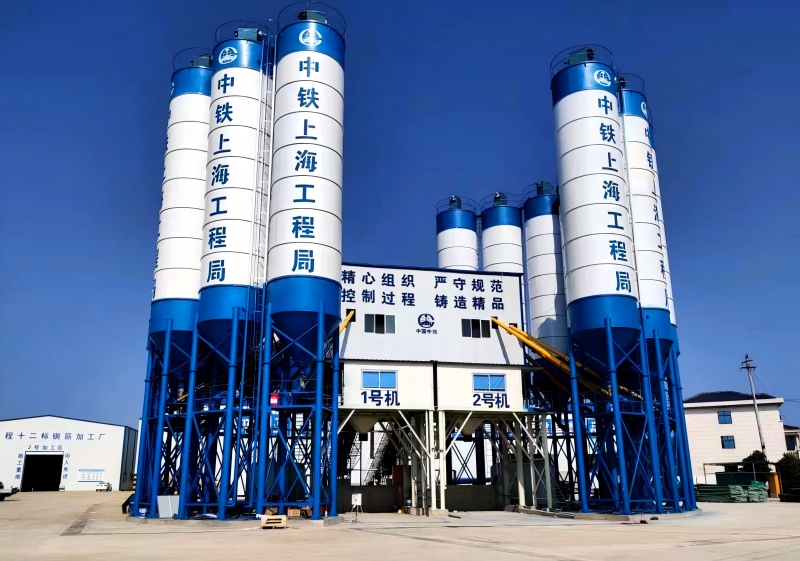

HZS180 Engineering Concrete Batching Plant
